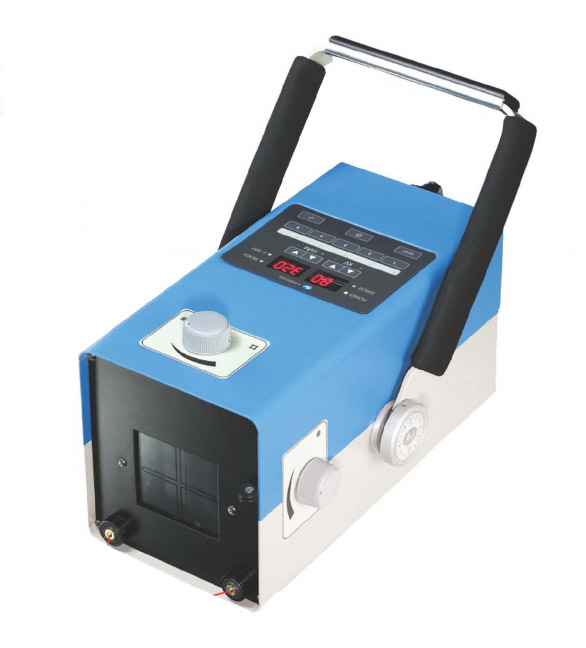

High Frequency Portable X Ray System 9020HF
High Frequency Portable X-Ray 9020HF Brochure
Features
- Ultra light weight-13 lbs.
- 40-90kV step /20mA , 18mA, 16mA
- 1.60 kW Max Output
- 2 Year Warranty
- Dual laser pointers (26″) & measuring tape
- Built in collimator
- Reversible digital display of kV & mAs
- Soft touch user panel
- Overload protection for kV,mA time and temp.
- Electronic voltage compensation
- Self manageable APR functions with 5 memory keys
- Foam grips on each side of hande for easy handling
- Laser pointers and collimator light activate with a touch of the exposure switch
- Carrying case for easy transport
- Ideal for equine applications
Specifications
| Max. Output | 1.60kW | |
|---|---|---|
| High Frequency Inverter type | 100kHz | |
| Kv rating | 40~90kV, 1kV increment | |
| mA Rating | max. 20mA | |
| mAs rating | 0.4 ~ 32 mAs, 93steps at each kV step | |
| Exposure time |
|
|
| Cool down period |
2 min at maximum output |
|
| Total filtration | min. 2.55 mm Al eq. | |
| X-ray tube focal sport size | 1.22mm, target angle: 19 degrees | |
| Anode heat storage capacity | 10kJ | |
| Weight | 13 lbs | |
| Dimensions ( W x D x H) | 5.6 x 11.6 x 6.1 (in) 144 x 295 x 157, (mm) excluding hand grip |
